Home Products Filling Machine Semi-automatic Filling Machine 500U Granular Sauce Filling Machine Pepp
500U Granular Sauce Filling Machine Pepper Sauce Filling Machine Peanut Sauce Filling Machine Beef Sauce Filling500U Granular Sauce Filling Machine Pepper Sauce Filling Machine Peanut Sauce Filling Machine Beef Sauce Filling500U Granular Sauce Filling Machine Pepper Sauce Filling Machine Peanut Sauce Filling Machine Beef Sauce Filling500U Granular Sauce Filling Machine Pepper Sauce Filling Machine Peanut Sauce Filling Machine Beef Sauce Filling

500U Granular Sauce Filling Machine Pepper Sauce Filling Machine Peanut Sauce Filling Machine Beef Sauce Filling

  • Product Item:YTK-PF500U
  • Dimension(L*W*H): 1200*900*850mm
  • Weight (KG): 55
  • Production Capacity: 4~30bottles/min
  • Filling range: 100-500g
  • U Shape Liquid Filling Machine  , Paste Filling Machine
    Inquiry Send Email

    Description

    Product Description

    YTK pneumatic stirring filling machine is equipped with automatic mixing function. It has simple structure, high filling precision and simple operation. The filling valve is controlled by pneumatic valve. The filling volume and filling speed can be adjusted freely. The filling valve adopts anti-drawing and The lifting and filling device, the material contact parts are made of 304 stainless steel material, in line with GMP standards.



    Model
    YTK-PF500U
    Voltage
    220V 120W
    Filling range
    100-500g
    Filling speed
    8-25pcs/min
    Filling accuracy
    ≤1%
    Air pressure
    0.4-0.6Mps 10m³/h
    Gross weight
    100KG


    1. High quality cylinder
    2. 304 stainless steel body
    3. Large motor
    4. Comes with mixing function
    5. Anti-drip
    6. With emergency stop protection system
    7. One-button maintenance



    Product Application

    Suitable for bean paste, ketchup, chili sauce, etc.




    Product Detail


    High quality cylinder

    The filling machine uses high-quality cylinders for greater strength, efficiency and durability.

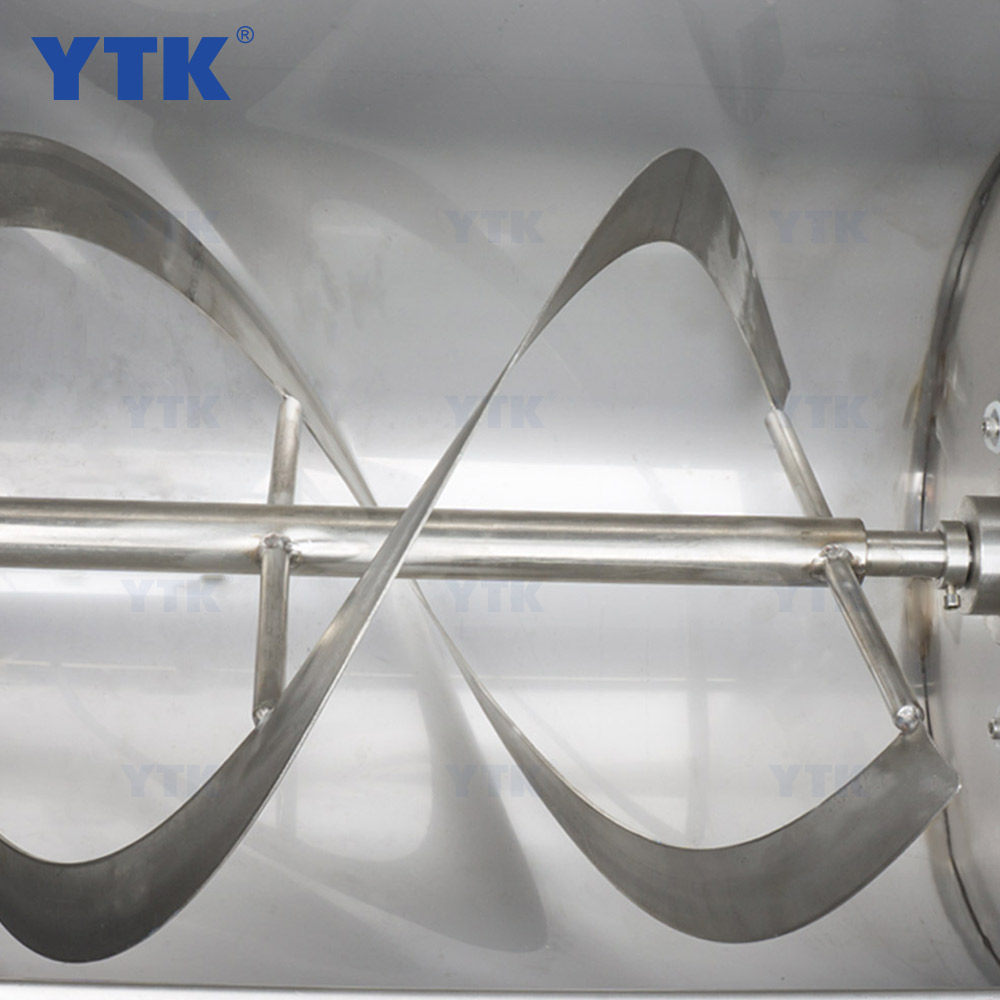

    Large hopper with stirring function
    Extra large stainless steel hopper with automatic mixing function to ensure filling products, especially those containing granules, to evenly stir and make the product more evenly filled.





    High quality large motor
    Imported super-large motor, more powerful, less noise and more stable performance.





    Stainless steel anti-drip filling nozzle
    The filling nozzle is made of 316L steel, which can be accurately filled without clogging. The anti-drip design is equipped with self-retracting function and the filling is more precise.





    Filling precision
    Hand-operated, the scale is clear and accurate.
