Description
Introduce
The machine is a powder and small particle automatic filling machine, which can complete the automatic positioning, filling and metering of the bottle. It consists of a filling head, a chain conveyor belt and a positioning device, using servo motor, PLC and Touch screen control, easy to operate, high stability. It can be combined with machines such as bottle unscrambler, capping machine and labeling machine. Suitable for packaging powder and small granular materials, such as powder, small granules, veterinary drugs, glucose, condiments, solid beverages, toner, talcum powder, pesticides
Features
1. Touch screen control, Chinese and English switching, can be used abroad
2. Filling machine hopper with slow stirring to prevent powder agglomeration, uneven discharge, the machine is constructed of 304 stainless steel, safe and sanitary
3. Using high-quality motor, long life and good stability
4. Positioning device, accurate filling positioning, no bottle to enter without filling
5. Snap-on design, internal cleaning is more convenient, and the filling and filling quantitative accuracy is high.
The machine is a powder and small particle automatic filling machine, which can complete the automatic positioning, filling and metering of the bottle. It consists of a filling head, a chain conveyor belt and a positioning device, using servo motor, PLC and Touch screen control, easy to operate, high stability. It can be combined with machines such as bottle unscrambler, capping machine and labeling machine. Suitable for packaging powder and small granular materials, such as powder, small granules, veterinary drugs, glucose, condiments, solid beverages, toner, talcum powder, pesticides
Features
1. Touch screen control, Chinese and English switching, can be used abroad
2. Filling machine hopper with slow stirring to prevent powder agglomeration, uneven discharge, the machine is constructed of 304 stainless steel, safe and sanitary
3. Using high-quality motor, long life and good stability
4. Positioning device, accurate filling positioning, no bottle to enter without filling
5. Snap-on design, internal cleaning is more convenient, and the filling and filling quantitative accuracy is high.
Product parameters
Metering method
screw quantification
Package weight
1-500 grams (replace spiral attachment)
Packing accuracy
≤100g, ≤±2%; 100-500g, ≤±1%
Filling speed
20-50 bottles / minute
Power supply
3 boxes / 380 volts 50-60HZ
Machine power
1.2 kW
Compressed air pressure
5-8 kg / cm 2
Compressed air consumption
0.05 cubic meters / minute
Machine weight
220 kg
Dimensions
2000 × 850 × 1850 mm

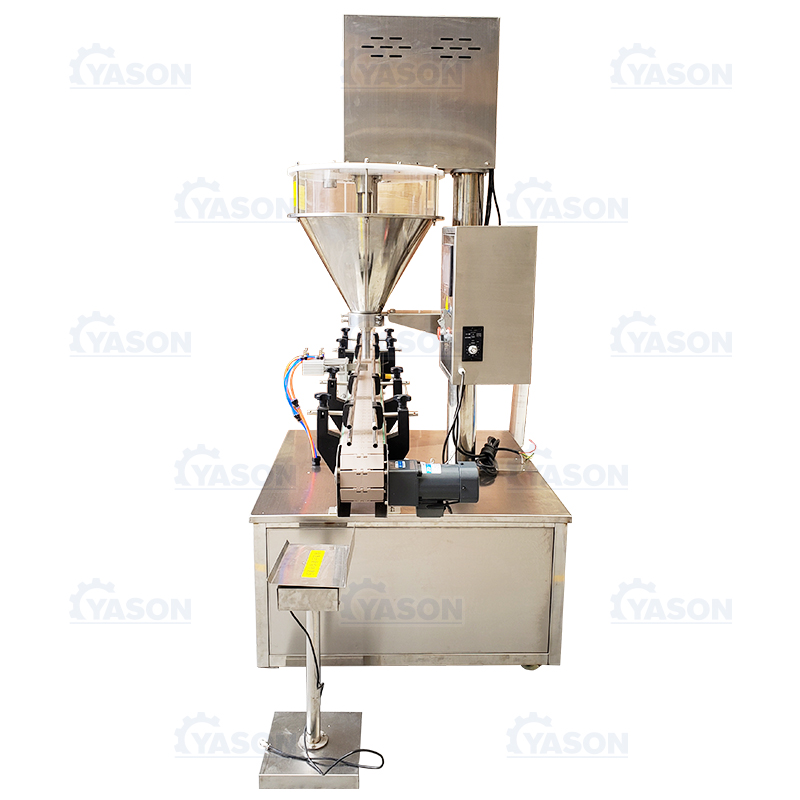

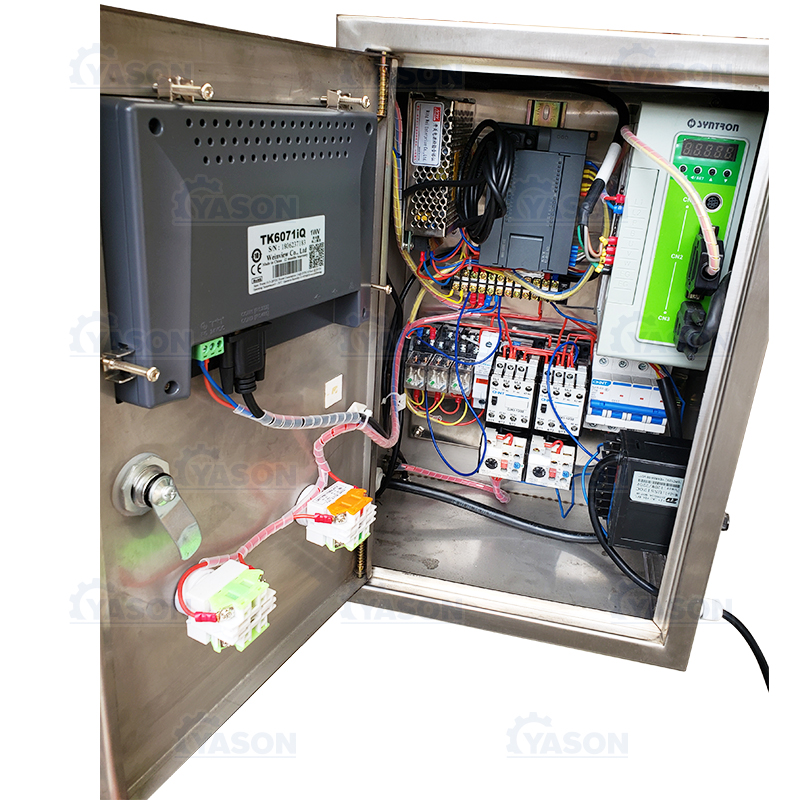

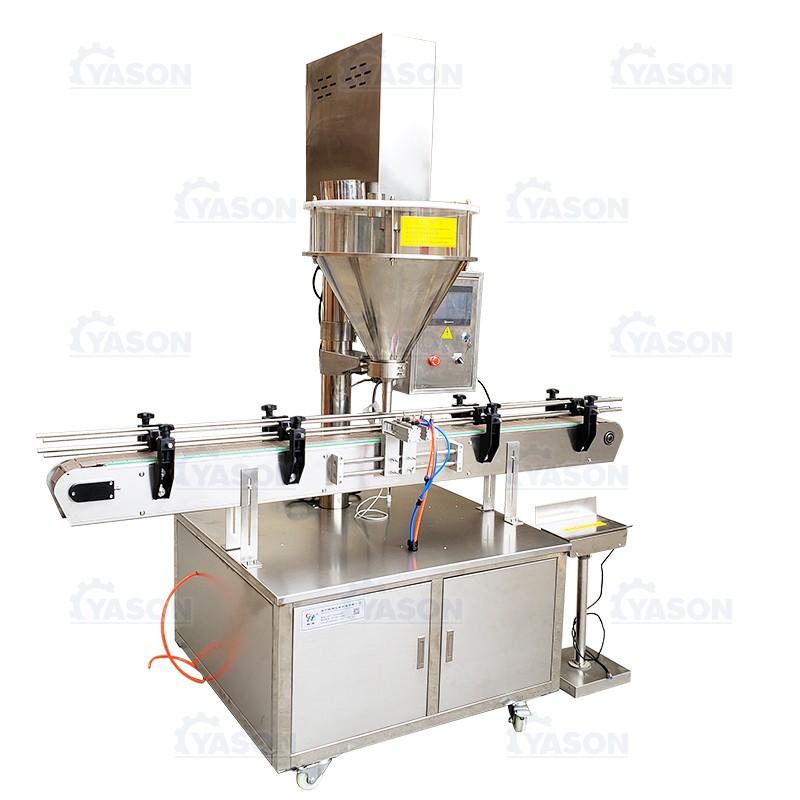

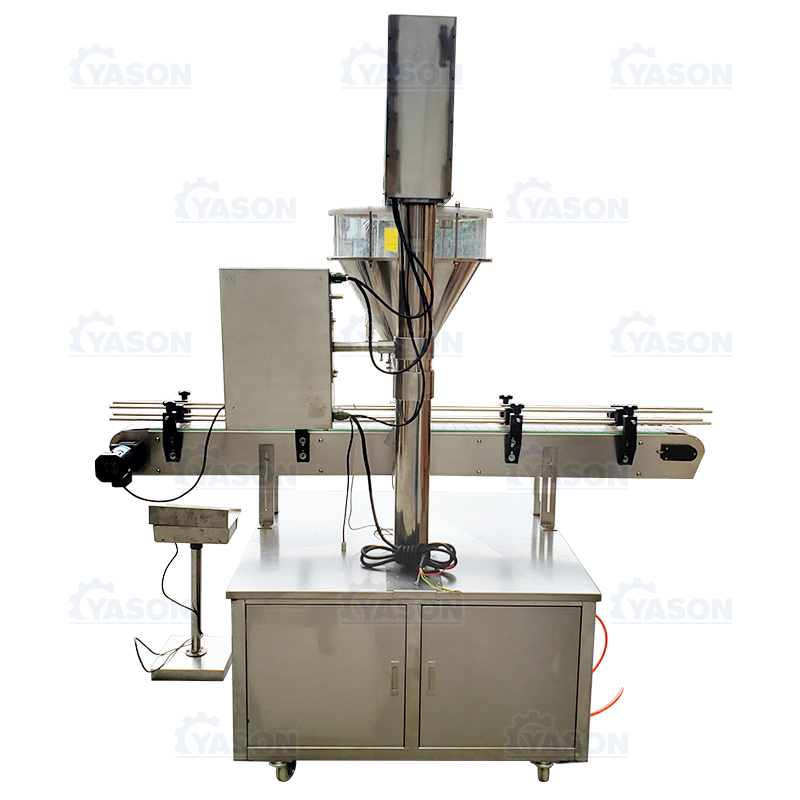

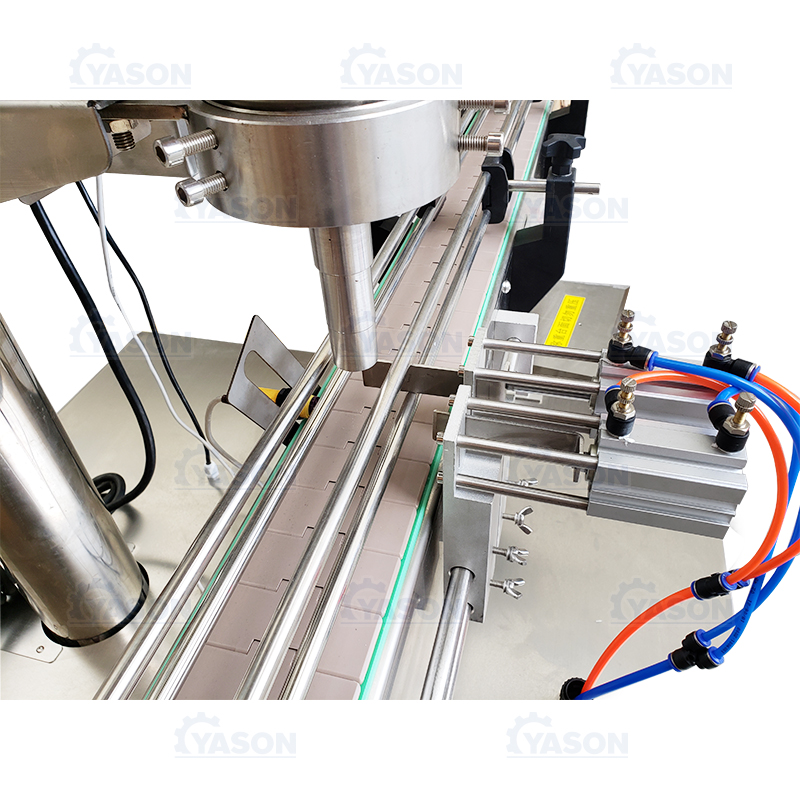

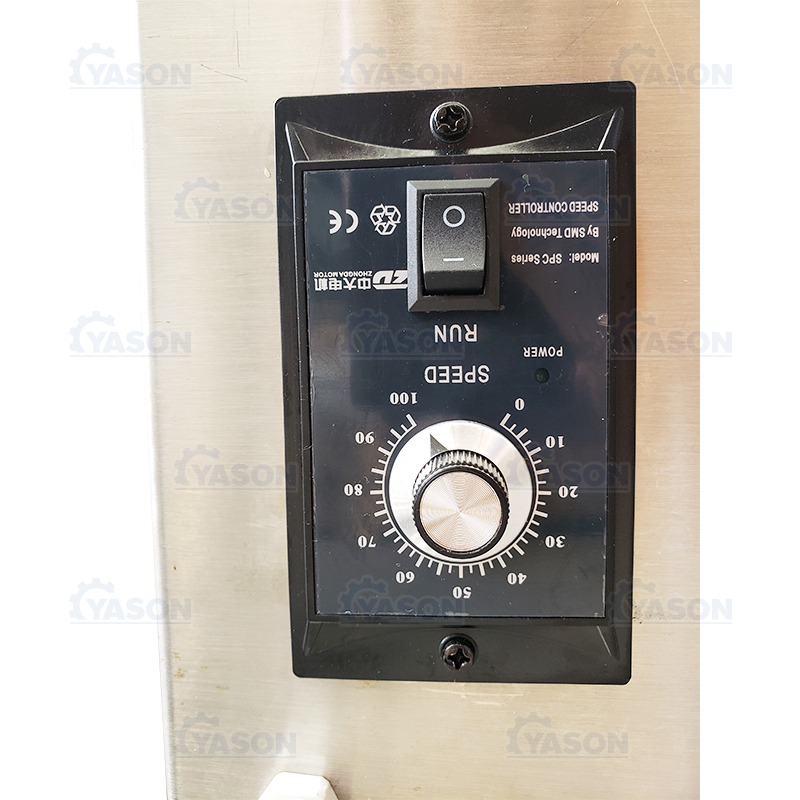

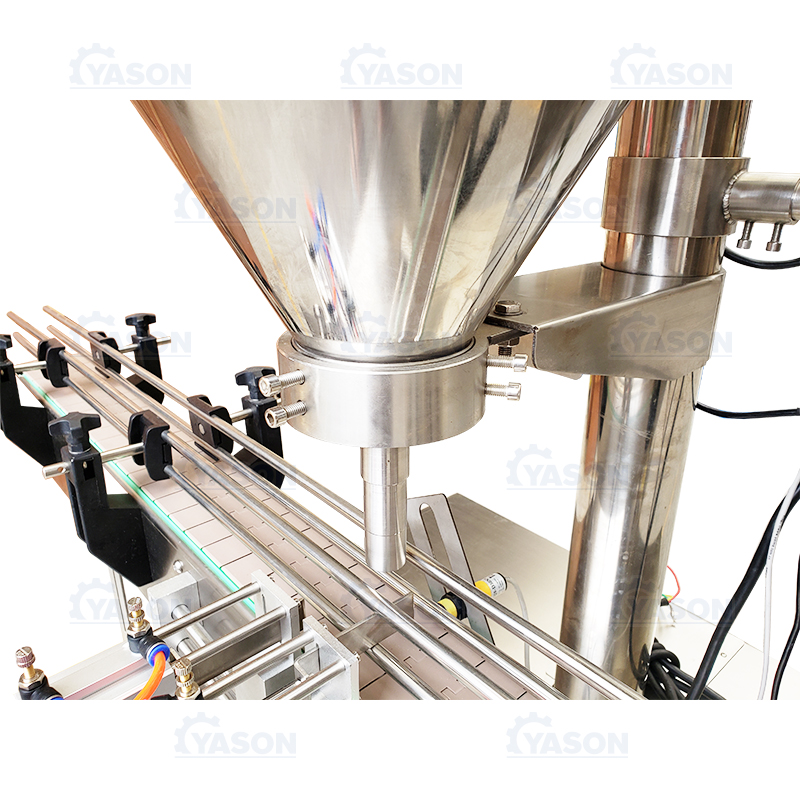

Detailed Images
