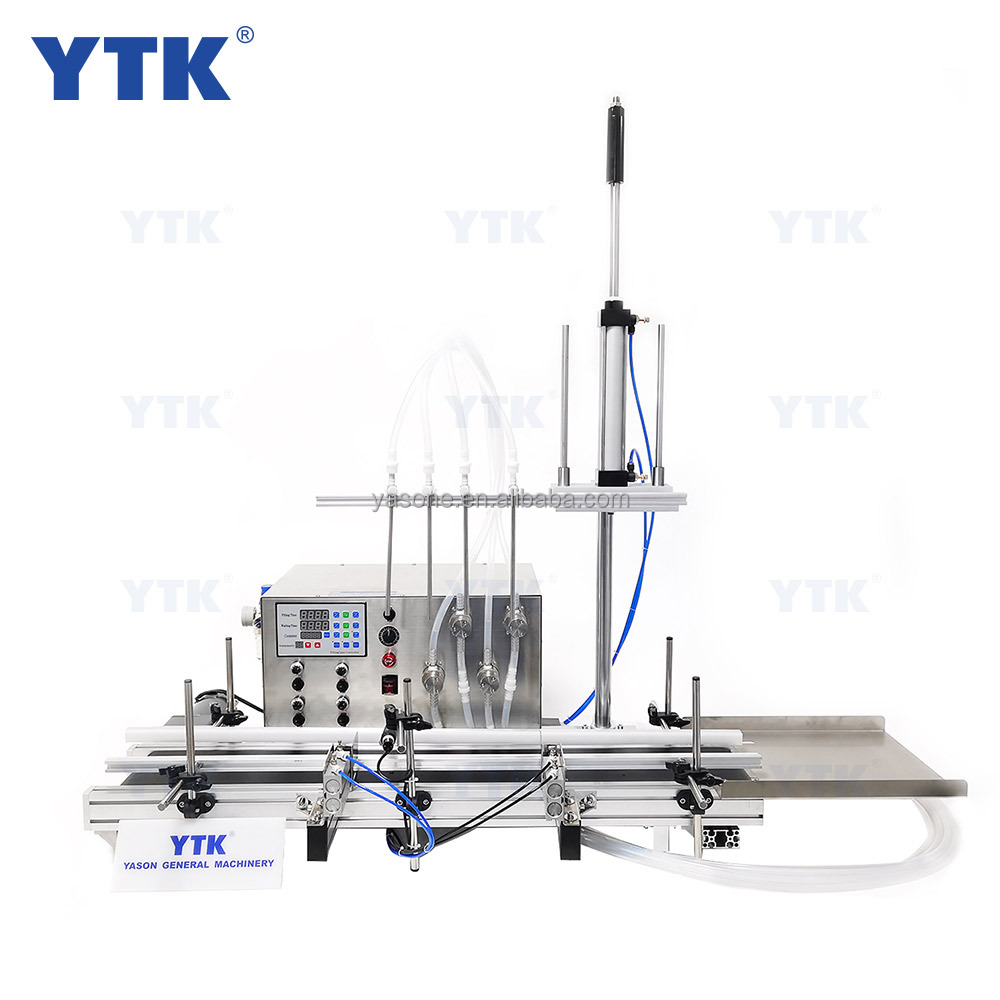

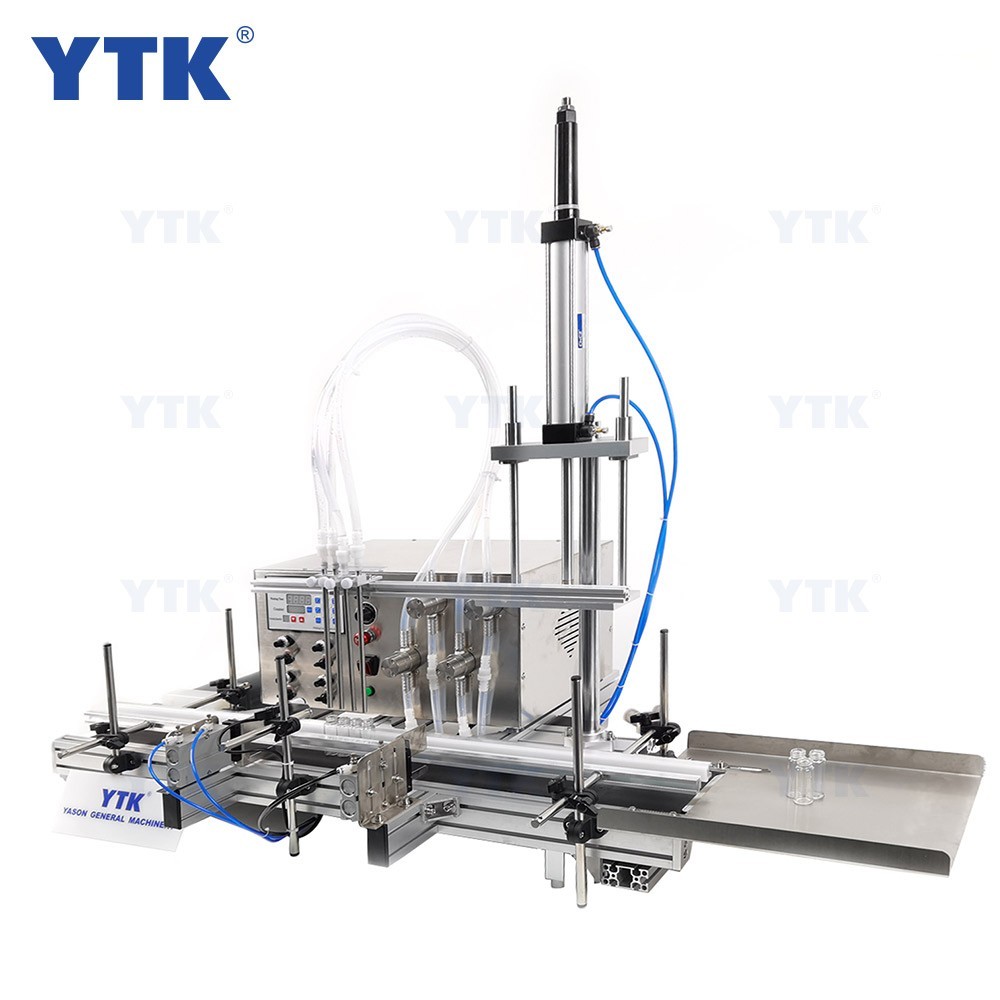

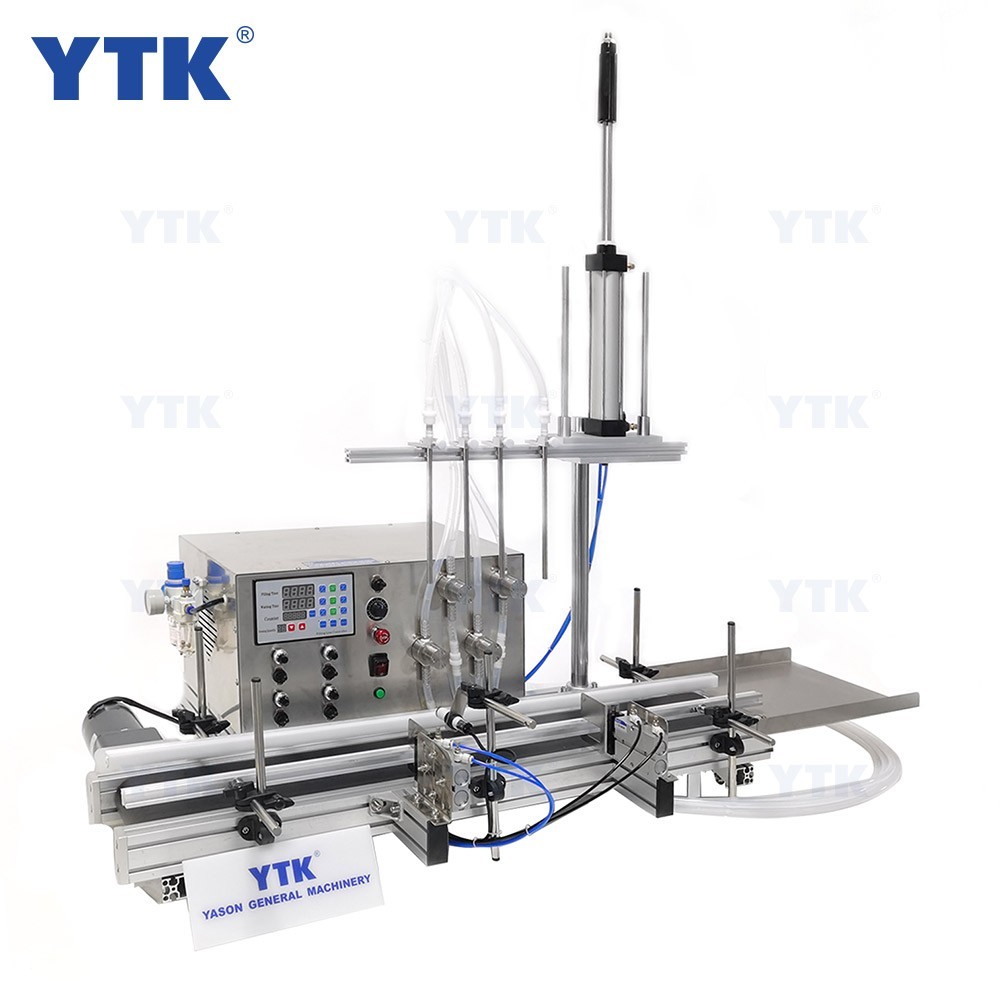

Automatic Desktop CNC Peristaltic Pump Liquid Filling Machine With Conveyor For Perfume Filling Machine Water Filler

  • Product Item：YTK-FMMP4A
  • Dimension(L*W*H): About 1110*650*420mm
  • Voltage: 110/220V 50-60HZ
  • Weight: About 50.5kg
  • Filling speed: 20-30 bottles/min
    • Perfume Filling Machine Water Filler
    Inquiry Send Email

    Description

    Product Description

    Desktop full automatic machine is very efficient with high cost performance. It is widely used in medicine, daily chemical and other industries such as essential oils, perfumes, juice liquid etc. Machine with peristaltic pump is easy to change tube. Liquid won't pass through the pump. It is good choice for strong corrosive liquid such as biological liquid, eye drops, sulfuric acid, hydrochloric acid, disinfectant, etc. To replace with fluorine rubber tubes, it can also use to essential oils, solvents, etc.





    Specification

    Machine model
    YTK-FMMP4A
    YTK-FMMP4B
    Power supply
    110/220V 50-60HZ
    Maximum flow velocity
    5500ml/min
    9000ml/min
    (Each nozzle and base on water)
    (Each nozzle and base on water）
    Working speed
    20-30 bottles/min
    20-40 bottles/min
    (based on 50-1000ml filing volume)
    (based on 50-1000ml filling volume)
    Power
    250W
    Air pressure
    0.3-0.4MPa
    Filling accuracy
    ≤±1% (For water)
    Diameter of Filling Nozzle
    6/8mm
    Delay Range
    0.01-999.9s
    Count Range
    1-99999 Times
    Filling Volume
    3-1000ml(220V)3- 500ml(110V)
    Size of air compressor connector
    OD8mm
    Bottle height
    ＜220mm(Can be customized,max height 300mm)
    Package Size
    About 1110*650*420mm
    About 1110*650*420mm
    Gross weight
    About 50.5kg
    About 51.5kg

    Application

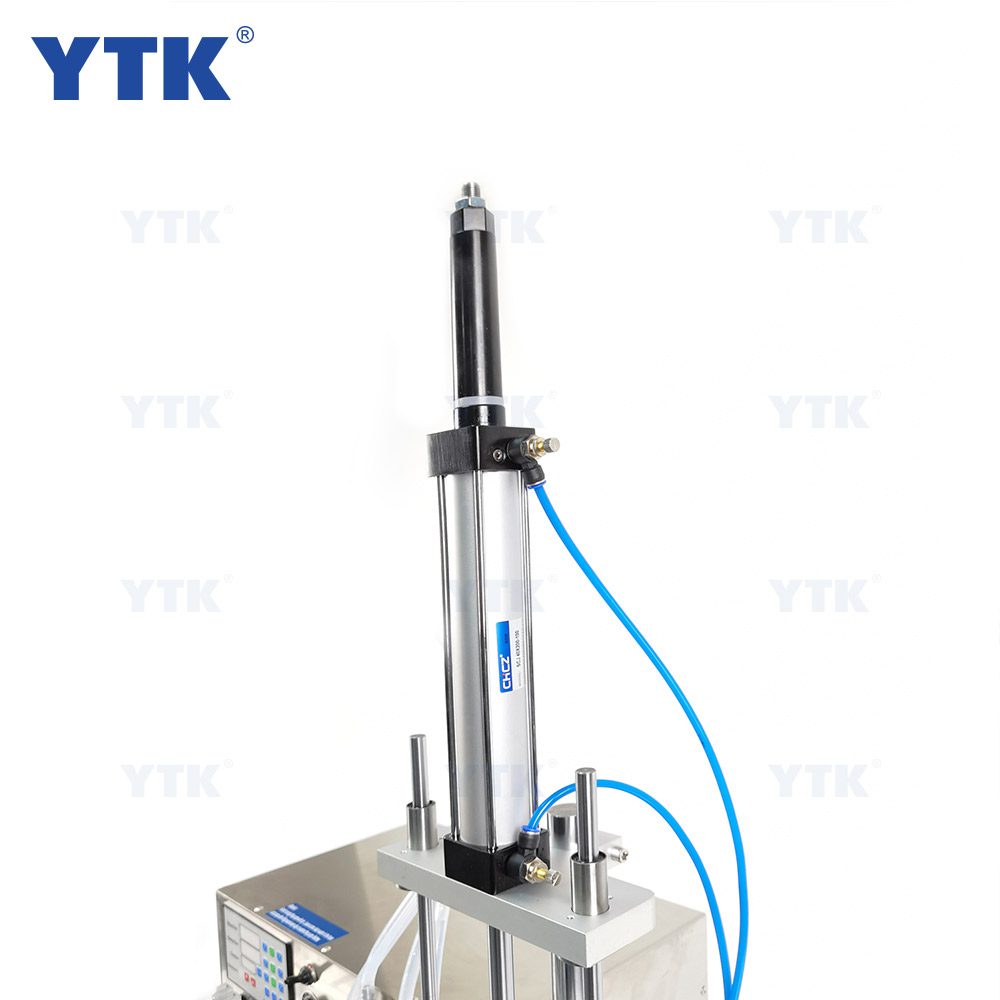

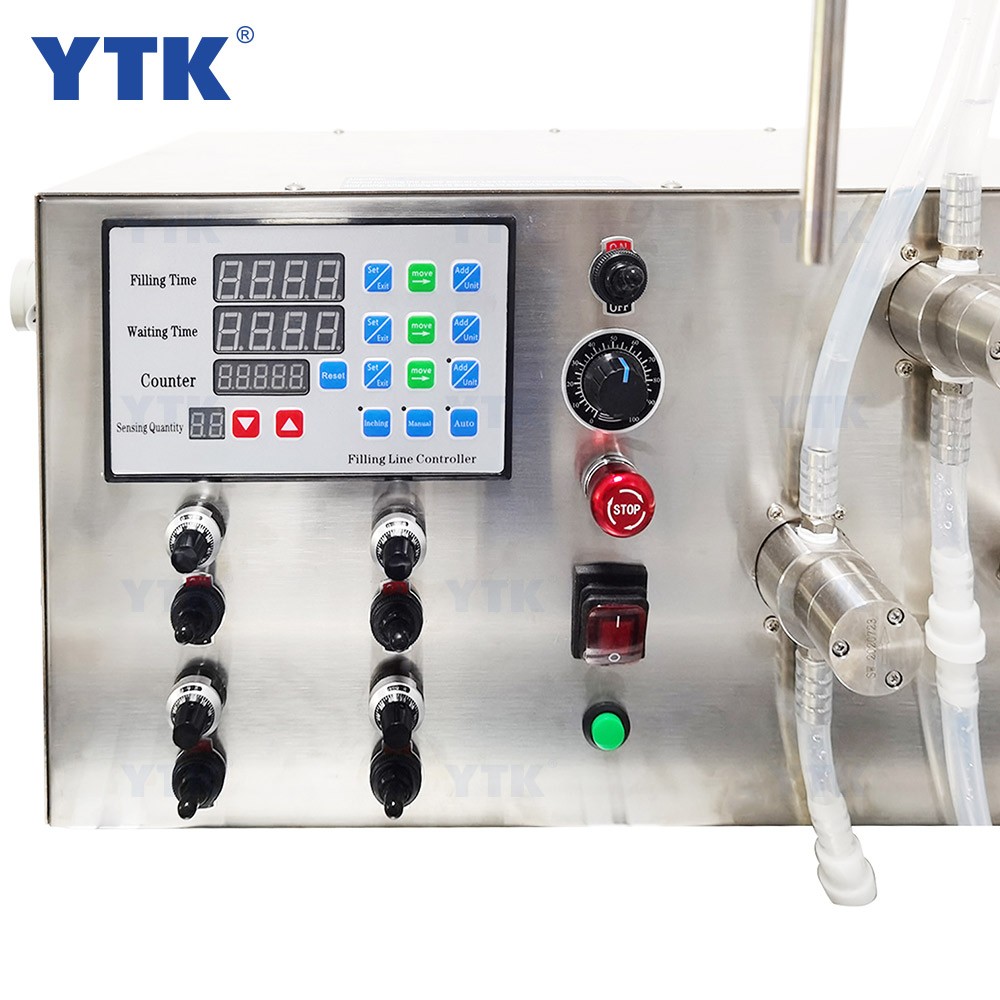

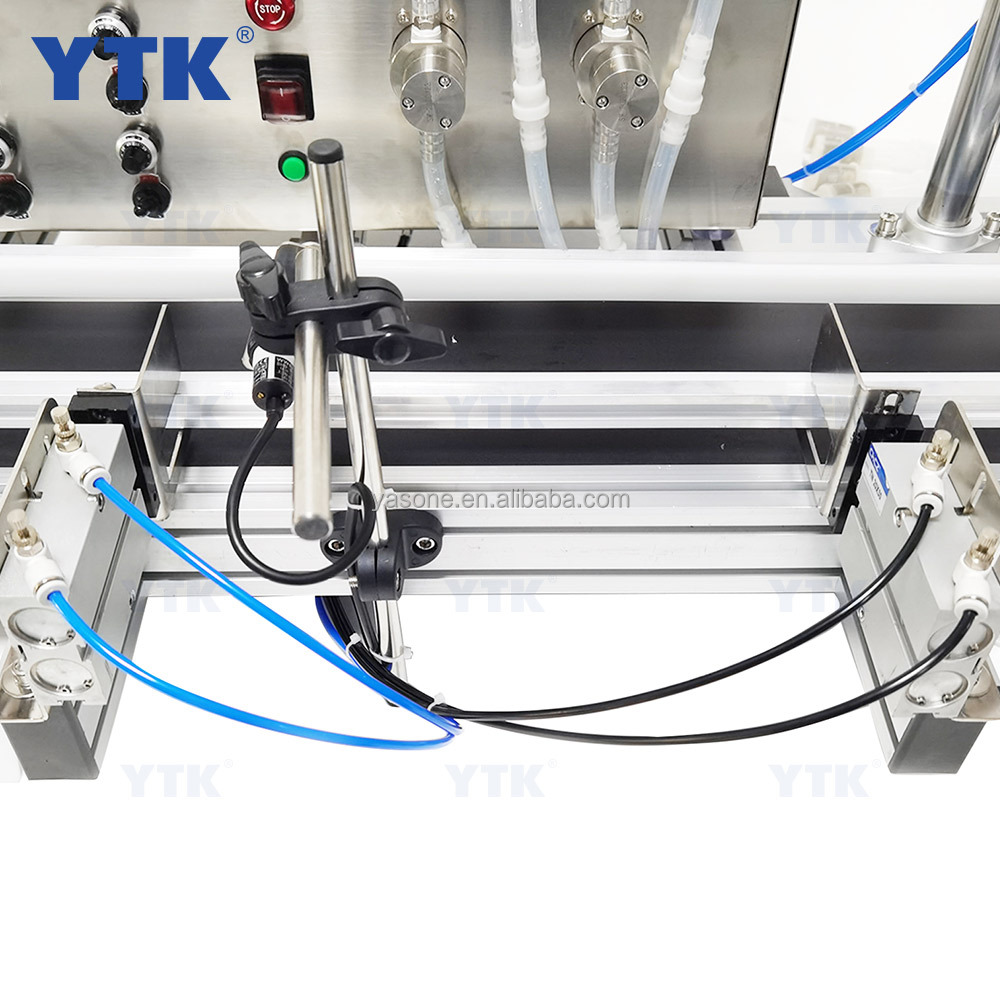

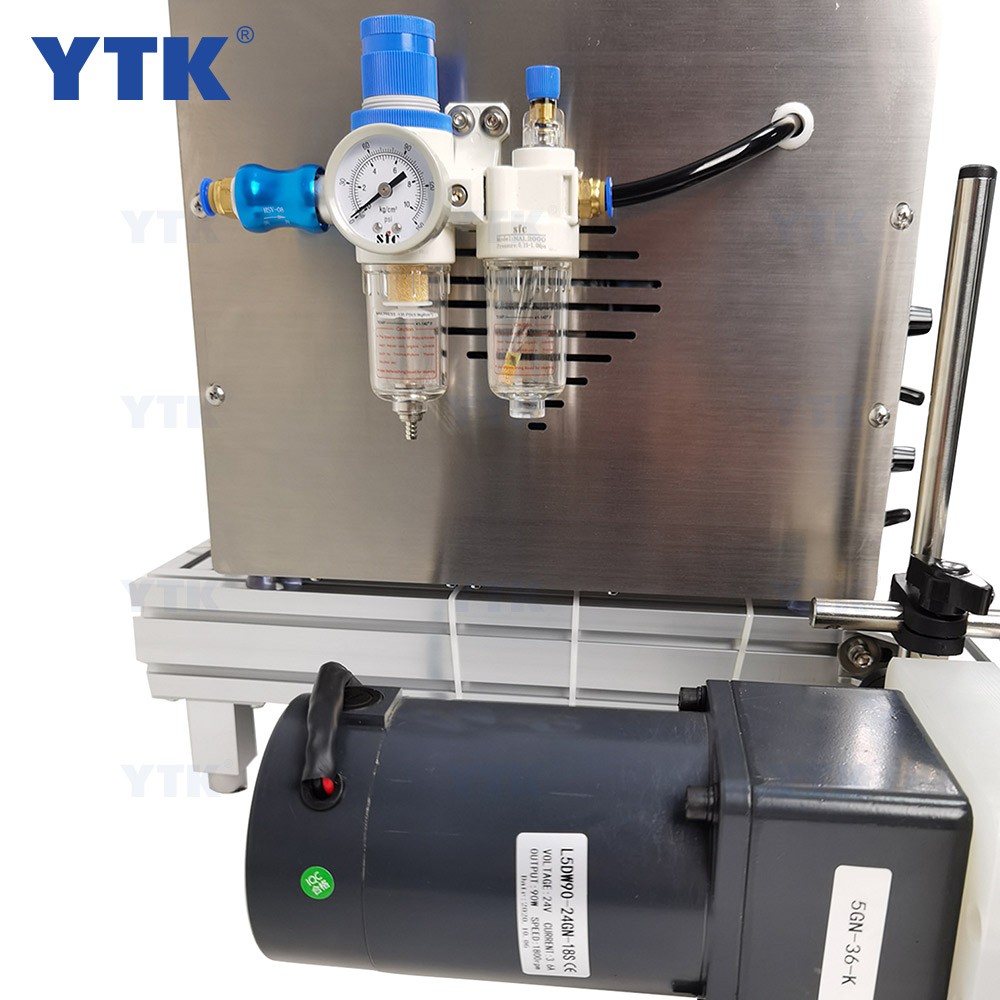

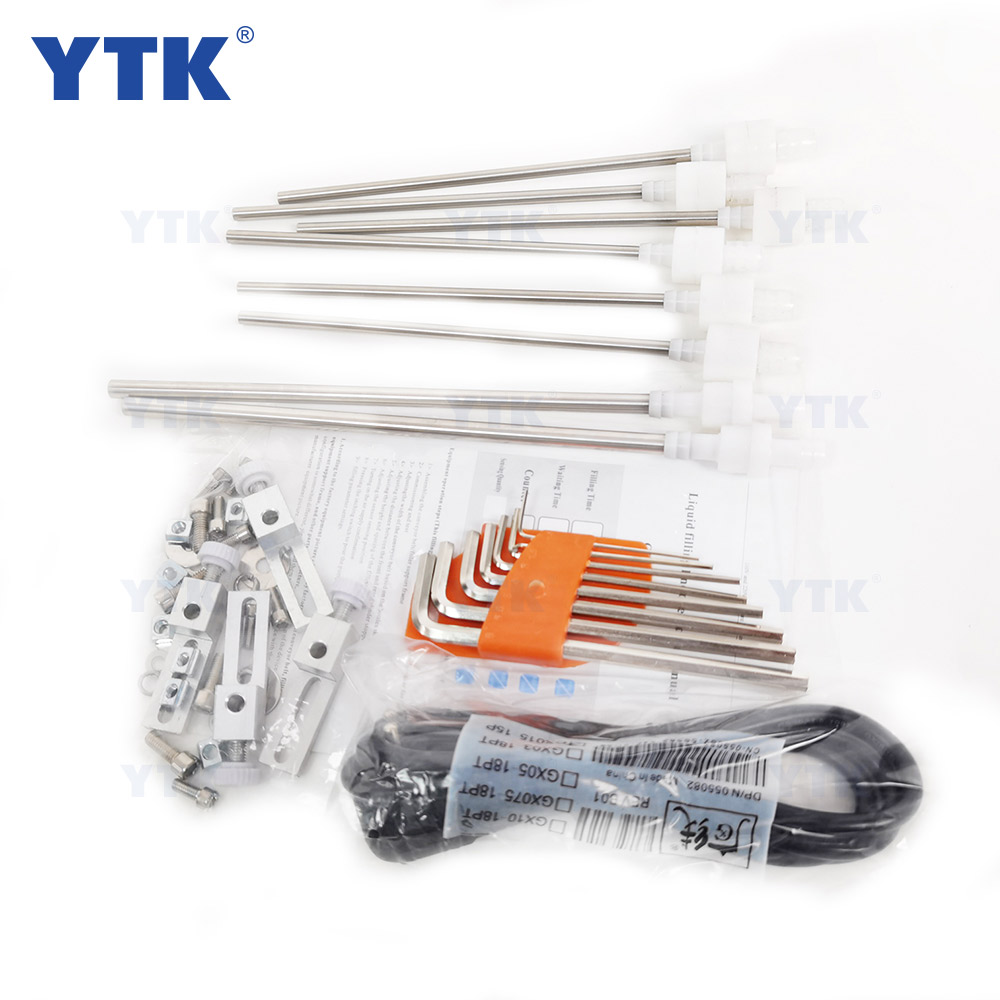

    Detail Images
